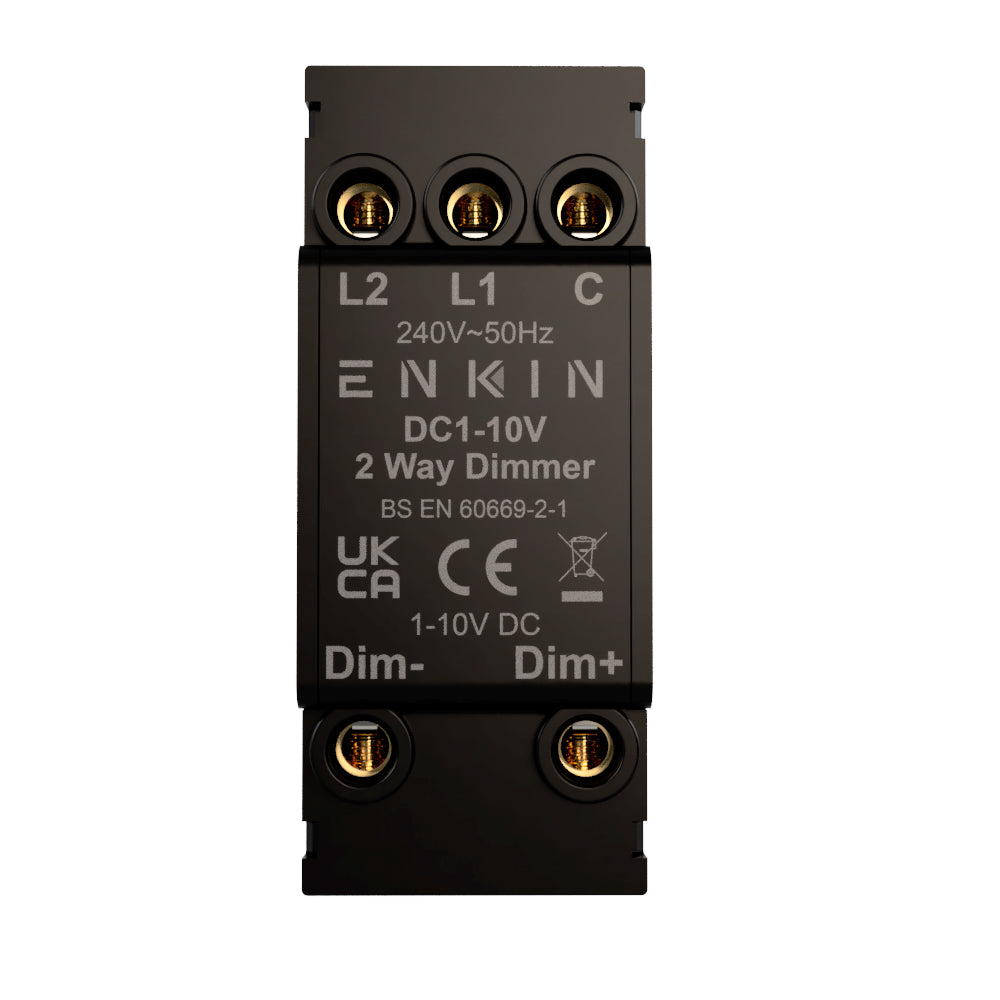

Enkin PDM020 DC 1-10V 2-Way Dimmer
Enkin PDM020 DC 1-10V 2-Way Dimmer
Our award-winning 1-10V DC Dimmer is a robust, high-capacity dimmer designed for use with commercial or specialist lighting systems where the use of a DC controlled driver is required. With an integrated soft-start function designed to prolong the life of LEDs, and silent, flicker free Enkin technology, the PDM020 provides you with effortless control for optimal ambient lighting.
- One or Two Way Switching
- Only for use with a suitable SELV Dimmable LED Driver or 1-10V Dimmable Ballast
- Operating Voltage: 240V ~ 50Hz (relevant to Example Wiring Diagram 2 of the Technical Specification document below)
- Minimum Load: N/A
- Maximum Load: 1000W
- Adjustable voltage: DC 1-10V
- Dimming range: 1-100%
- Silent & flicker free
- Soft start feature
- Full short circuit protection
- In-built over-current protection
All Enkin products come with a five-year guarantee.
