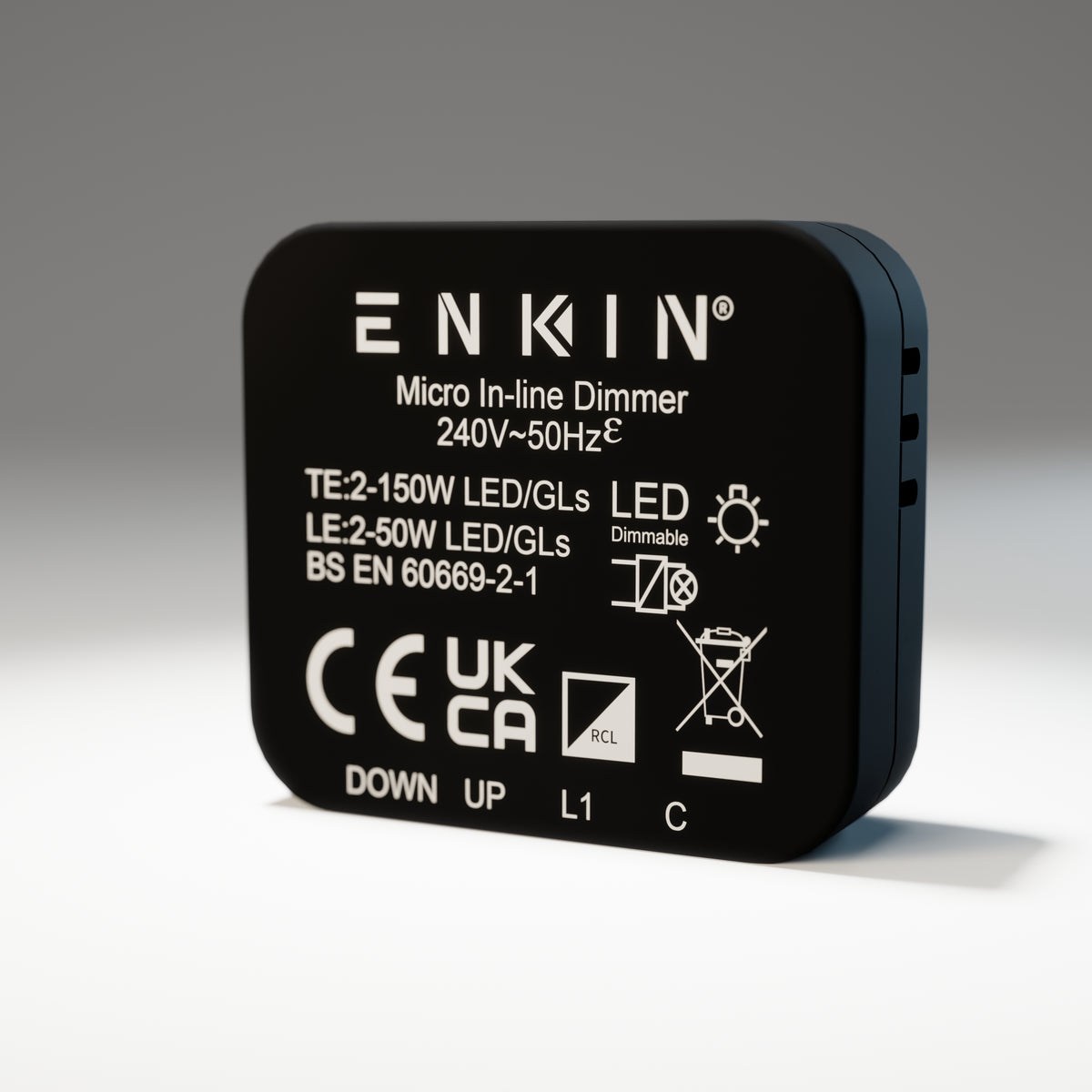

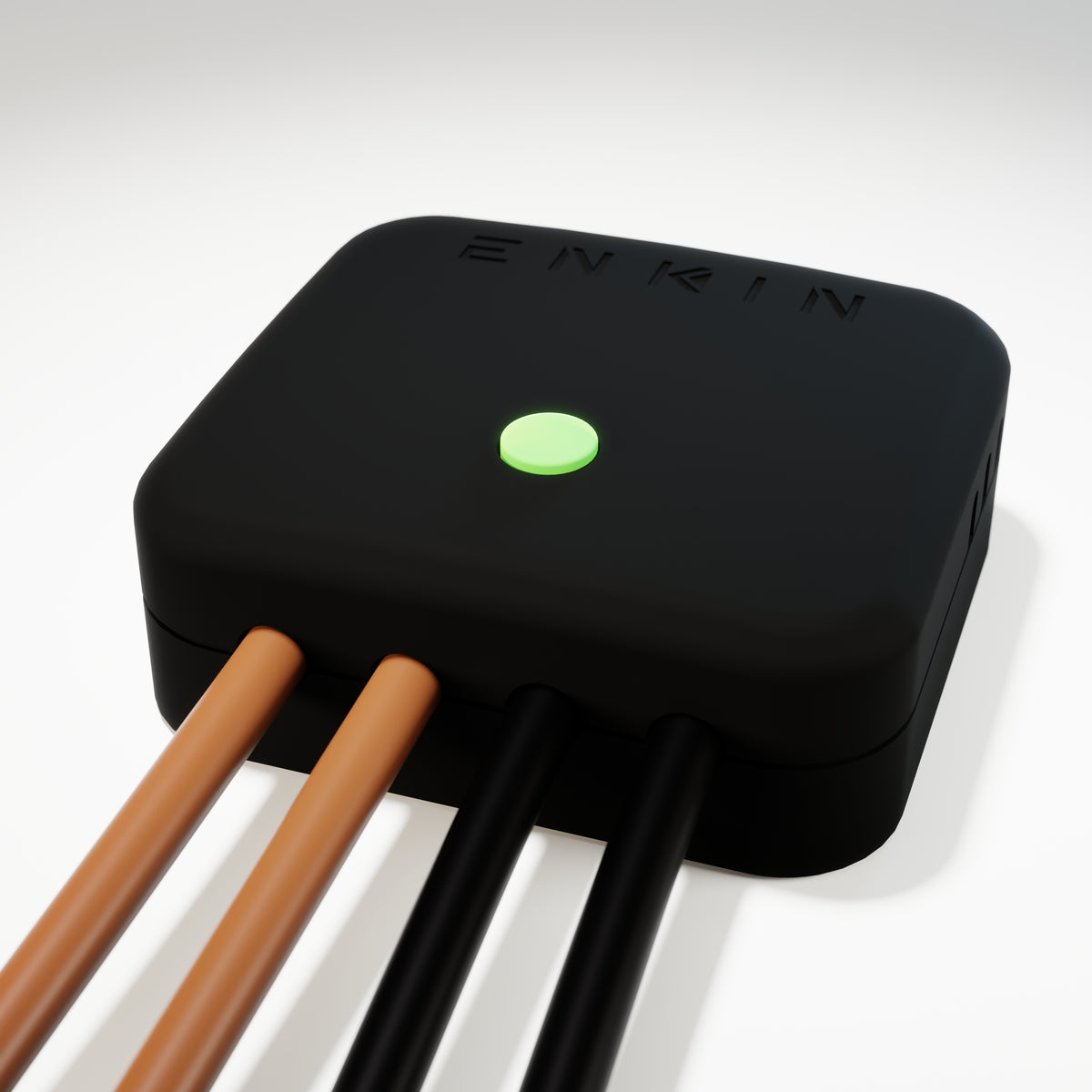

IDM150 Micro In-Line Dimmer

The IDM150 Micro In-Line Dimmer has been designed to bring multi-point dimming to even the tightest of installations. It works by converting a retractive switch or toggle into a dimming module with a neutral position. At just 32 x 29 x 12mm, it is small enough to fit into an architrave back box. By holding the retractive switch down you can control the brightness of your lights, and with a simple click you can turn your lights on and off, allowing you dimming control from multiple switches.

With silent, flicker-free technology and adjustable minimum and maximum brightness levels, the IDM150 comes with a three-year guarantee, meaning you can be assured that your dimmer modules are the highest quality.

• Operating Voltage: 110V / 220-240V ~ 50/60Hz
• Minimum Load: 2W LED (2W Incandescent / Halogen)
• Maximum Load: 150W LED (150W Incandescent / Halogen)
• Trailing/Leading Edge (up to 50W in Leading Edge mode)
• No Neutral required
• Soft start feature
• Silent & flicker free
• Self-Recovering Thermal Fuse
• Short Circuit & Overload Protection
• Easy push button setup
• Adjustable Min/Max brightness
• On, Off & Dimming function controlled via connected Retractive Switch(s)
• Micro form factor, will fit into an architrave back box
• 5-year warranty

The IDM150 can be used in the same way as the IDM250 when paired with a standard retractive switch, rather than a two-way and off retractive switch. This allows on/off and dimming toggle switches to maintain a consistent appearance when installed on the same faceplate or throughout a room, creating a seamless, coordinated finish.
